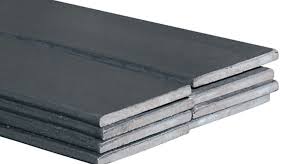

CARACTERÍSTICAS: Perfil estructural laminado en caliente, de sección rectangular.
NORMA TÉCNICA: ASTM A36 Tolerancias dimensionales: ISO 1035/4
PRESENTACIÓN: Barras de 6 metros de longitud.
USO: Para estructuras metálicas, torres de transmisión, puentes, carpintería metálica, etc.
| DIMENSIONES Espesor (mm.) x Ancho (plg.) |
Peso Teórico (kg./m.) | Peso Teórico (kg./6m.) |
|---|---|---|
| 3.0 mm. x 1/2″ | 0.299 | 1.79 |
| 3.0 mm. x 5/8″ | 0.488 | 2.69 |
| 3.0 mm. x 3/4″ | 0.597 | 3.58 |
| 3.0 mm. x 1″ | 0.373 | 2.24 |
| 3.0 mm. x 1 1/4″ | 0.560 | 3.36 |
| 3.0 mm. x 1 1/2″ | 0.746 | 4.48 |
| 3.0 mm. x 2″ | 0.448 | 2.69 |
| 4.5 mm. x 1/2″ | 0.672 | 4.03 |
| 4.5 mm. x 5/8″ | 0.896 | 5.38 |
| 4.5 mm. x 3/4″ | 0.597 | 3.58 |
| 4.5 mm. x 1″ | 0.896 | 5.38 |
| 4.5 mm. x 1 1/4″ | 1.119 | 7.19 |
| 4.5 mm. x 1 1/2″ | 0.747 | 4.48 |
| 4.5 mm. x 2″ | 1.119 | 6.71 |
| 4.5 mm. x 3″ | 1.495 | 8.97 |
| 6.0 mm. x 1/2″ | 0.896 | 5.38 |
| 6.0 mm. x 5/8″ | 1.344 | 8.06 |
| 6.0 mm. x 3/4″ | 1.792 | 10.75 |
| 6.0 mm. x 1″ | 2.525 | 15.15 |
| 6.0 mm. x 1 1/4″ | 1.199 | 7.19 |
| 6.0 mm. x 1 1/2″ | 1.792 | 10.75 |
| 6.0 mm. x 2″ | 2.381 | 14.29 |
| 6.0 mm. x 2 1/2″ | 1.938 | 11.63 |
| 6.0 mm. x 3″ | 2.688 | 16.13 |
| 6.0 mm. x 4″ | 3.623 | 21.74 |
| 9.0 mm. x 1 1/2″ | 4.875 | 28.71 |
| DIMENSIONES EN PULGADAS Espesor x Ancho |
Peso Teórico (kg./m.) | Peso Teórico (kg./6m.) |
|---|---|---|
| 1/8″ x 1/2″ | 0.317 | 1.90 |
| 1/8″ x 5/8″ | 0.395 | 2.37 |
| 1/8″ x 3/4″ | 0.475 | 2.85 |
| 1/8″ x 1″ | 0.633 | 3.80 |
| 1/8″ x 1 1/4″ | 0.792 | 4.75 |
| 1/8″ x 1 1/2″ | 0.950 | 5.70 |
| 3/16″ x 1/2″ | 0.475 | 2.85 |
| 3/16″ x 3/4″ | 0.712 | 4.27 |
| 3/16″ x 1″ | 0.950 | 5.70 |
| 3/16″ x 1 1/4″ | 1.187 | 7.12 |
| 3/16″ x 1 1/2″ | 1.425 | 8.55 |
| 3/16″ x 2″ | 1.900 | 11.40 |
| 1/4″ x 1″ | 1.267 | 7.60 |
| 1/4″ x 1 1/4″ | 1.583 | 9.50 |
| 1/4″ x 1 1/2″ | 1.900 | 11.40 |
| 1/4″ x 2″ | 2.532 | 15.19 |
| 1/4″ x 2 1/2″ | 3.162 | 18.99 |
| 1/4″ x 3″ | 3.798 | 22.79 |
| 3/8″ x 1″ | 1.900 | 11.40 |
| 3/8″ x 1 1/2″ | 2.848 | 17.09 |
| 3/8″ x 2″ | 3.798 | 22.79 |
| 3/8″ x 2 1/2″ | 4.748 | 28.49 |
| 3/8″ x 3″ | 5.698 | 34.19 |
| 3/8″ x 4″ | 7.597 | 45.58 |
| 3/8″ x 5″ | 9.258 | 55.55 |
| 1/2″ x 1″ | 2.532 | 15.19 |
| 1/2″ x 1 1/2″ | 3.798 | 22.79 |
| 1/2″ x 2″ | 5.065 | 30.39 |
| 1/2″ x 2 1/2″ | 6.330 | 37.98 |
| 1/2″ x 3″ | 7.597 | 45.58 |
| 1/2″ x 4″ | 10.128 | 60.77 |
| 1/2″ x 5″ | 12.661 | 75.97 |
| 5/8″ x 4″ | 12.662 | 75.97 |
| 5/8″ x 5″ | 15.827 | 94.96 |
| 3/4″ x 4″ | 15.190 | 91.16 |
| 3/4″ x 5″ | 18.990 | 113.95 |
| 1″ x 4″ | 15.190 | 91.16 |
| 1″ x 5″ | 15.190 | 121.55 |
| Ancho Nominal (plg.) | Espesor e < 3/4″ | 3/4″ ≤ e < 1 5/8″ | Espesor e ≥ 1 5/8″ | Longitud |
|---|---|---|---|---|
| Menor a 2″ | ± 0.8 | ± 0.4 | ± 0.8 | -0 / + 50 |
| 2″ ≤ ancho < 3″ | ± 1.2 | ± 0.5 | ± 1.0 | -0 / + 50 |
| 3″ ≤ ancho < 4″ | ± 1.5 | ± 0.5 | ± 1.0 | -0 / + 50 |
| Mayor a 4″ | ± 2.0 | ± 0.5 | ± 1.0 | -0 / + 50 |
